S/N Ratio: >100dB;
Frequency Response: 20Hz -20KHz(+-0.5dB);
Damping Factor: >400;
Crosstalk: >70dB;
THD: <0.05%;
Switch Rate: >10V/us;
input sensitivity: 0.775v/1.4v/32dB;
+86–21–61478548
wechat

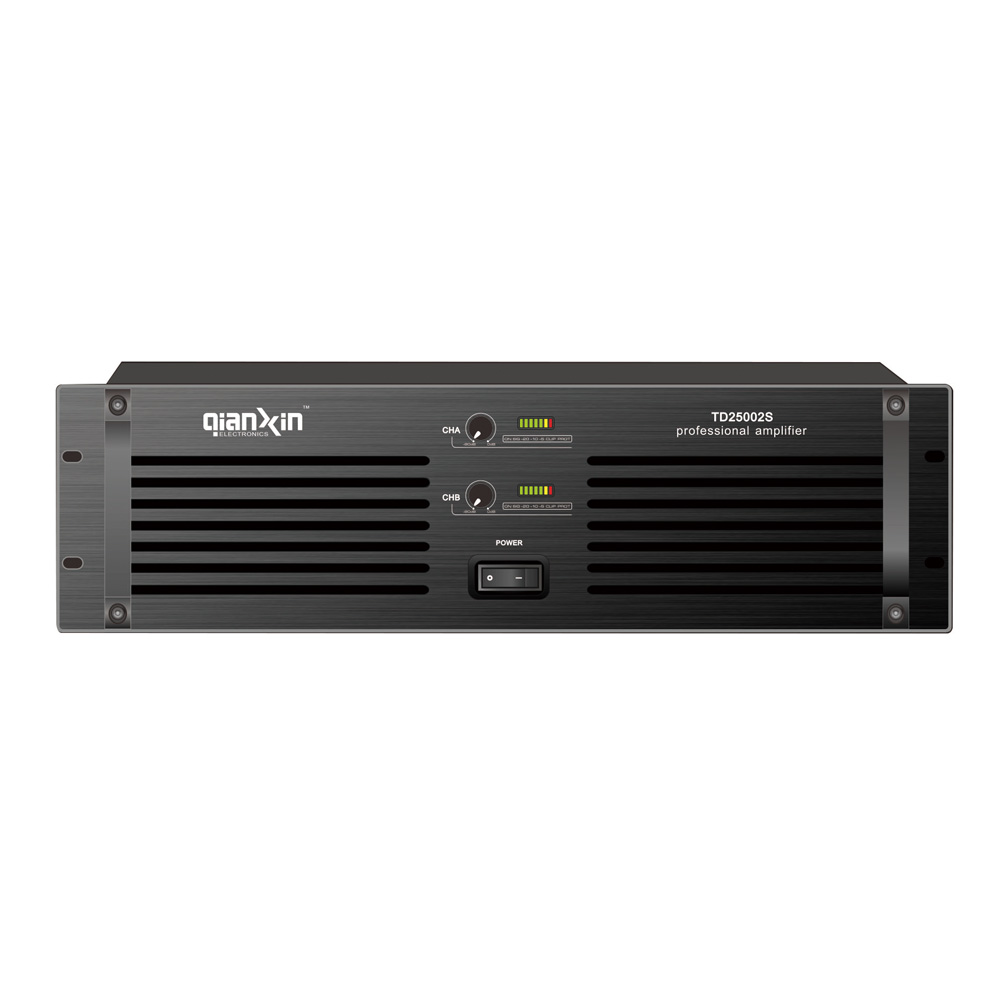

Product DetailsTechnical Parameter | TD20002S | TD25002S |
Power Output(2ohm) | 2X4100W/2OHM | 2X5200W/2OHM |
Power Output(4ohm) | 2X3200W/4OHM | 2X4000W/4OHM |
Power Output(8ohm) | 2X2000W/8OHM | 2X2500W/8OHM |
Bridge(4ohm) | 1X8000W | 1X9000W |
Bridge(8ohm) | 1X6400W | 1X8000W |
S/N Ratio | >100dB | |
Frequency Response | 20Hz -20KHz(+-0.5dB) | |
Damping Factor | >400 | |
Crosstalk | >70dB | |
THD | <0.05% | |
Switch Rate | >10V/us | |
input sensitivity | 0.775v/1v/32dB | |
input impedance | 20KHZ/10KHZ | |
Voltage Gain(8ohm) | 40dB | 42.9dB |
Output circuitry | Class TD | |
Cooling | FAN | |
Power supply | AC220V / 50HZ+-10% | |
Product Size | 483mmX503mmX133mm | |
Package Size | 620mmX585mmX170mm | |
G.W. | 43kg | 44kg |
