S/N Ratio(20Hz-20kHz)：＞112dB；
Frequency Response：2Hz-20kHz, (±1 dB) (1W)；
Damping Factor：＞500 (1KHz, 8ohm)；
THD：＜0.0042%, 2Hz-20kHz
Input gain：20dB, 23dB, 26dB, 29dB, 32dB, 35dB, 38dB, 41dB；
input impedance：20k ohms Balanced, 10k ohms unbalanced；
+86–21–61478548
wechat

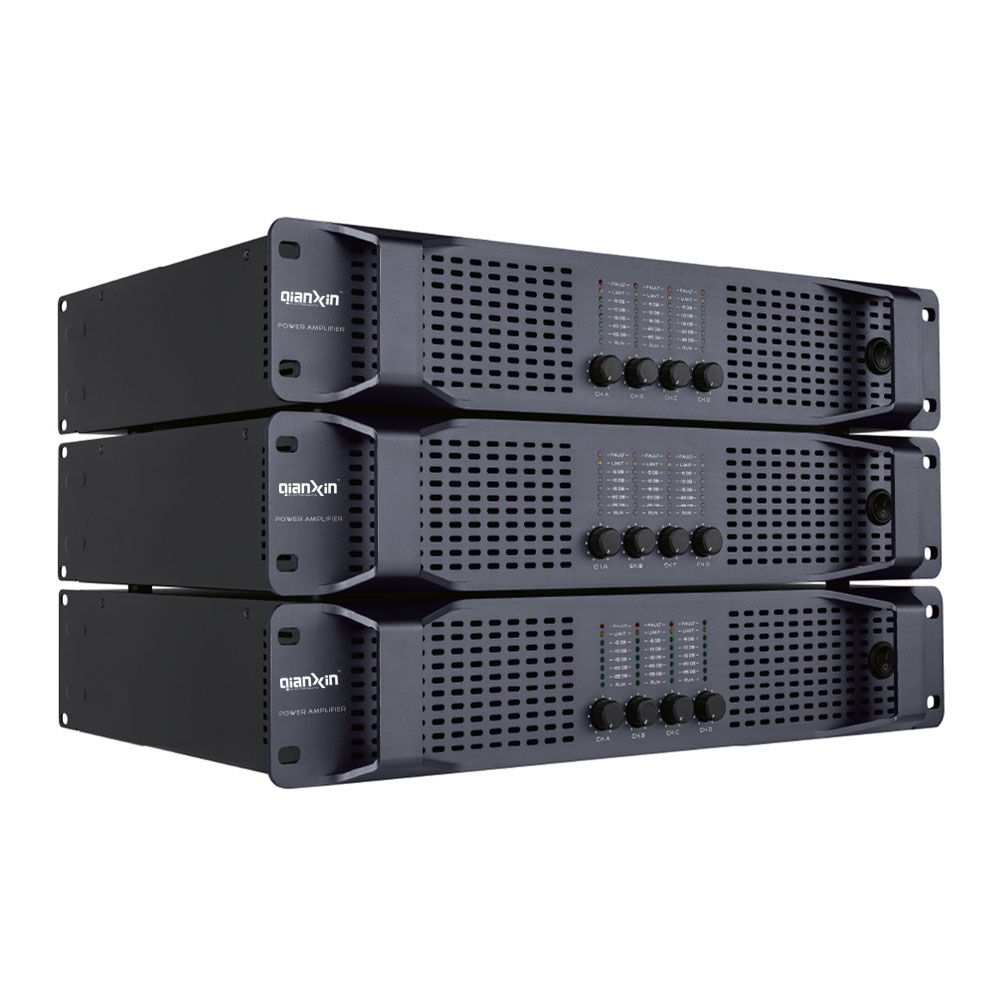

Product DetailsModel: | DS-4800 | DS-41000 | DS-41300 |
Power output(2ohm) | 1750W | 2520W | 3550W |
Power output(4ohm) | 1450W | 1800W | 2530W |
Power output(8ohm) | 800W | 1000W | 1400W |
Bridge Power(4ohm) | 3500W | 5000W | 7100W |
Bridge Power(8ohm) | 2900W | 3600W | 5060W |
S/N Ratio(20Hz-20kHz) | ＞112dB | ||
Frequency Response | 2Hz-20kHz, (±1 dB) (1W) | ||
Damping Factor | ＞500 (1KHz, 8ohm) | ||
THD | ＜0.0042%, 2Hz-20kHz | ||
Input gain | 20dB, 23dB, 26dB, 29dB, 32dB, 35dB, 38dB, 41dB | ||
input impedance | 20k ohms Balanced, 10k ohms unbalanced | ||
Switch Rate | 28V/us | ||
SMPTE Ratio | CH1-73dB, CH2-75dB | ||
Power supply | AC90V-264V (50Hz-60Hz) | ||
Protection circuit design | DC, Over load, over heating, short circuit and clip limit protection | ||
LED indicators | power indicator, signal level indicator, clip indicator, protection indicator | ||
Product Size | 483mm*343mm*88mm | ||
N.W./G.W. | 8.4KG/10KG 9.5KG/11.3KG | ||
