Frequency Response: +0.5/-1.0dB 20Hz -20kHz, refer to the nominal output level @1kHz;
Crosstalk: -74dB @ 1kHz;
Phantom Power: 48V phantom power per channel;
Input HPF: MIC INPUT(100Hz 12dB/oct);
USB Audio USB IN/OUT: USB Device, PC;
Power Supply: 220V 50Hz/60Hz;
+86–21–61478548
wechat

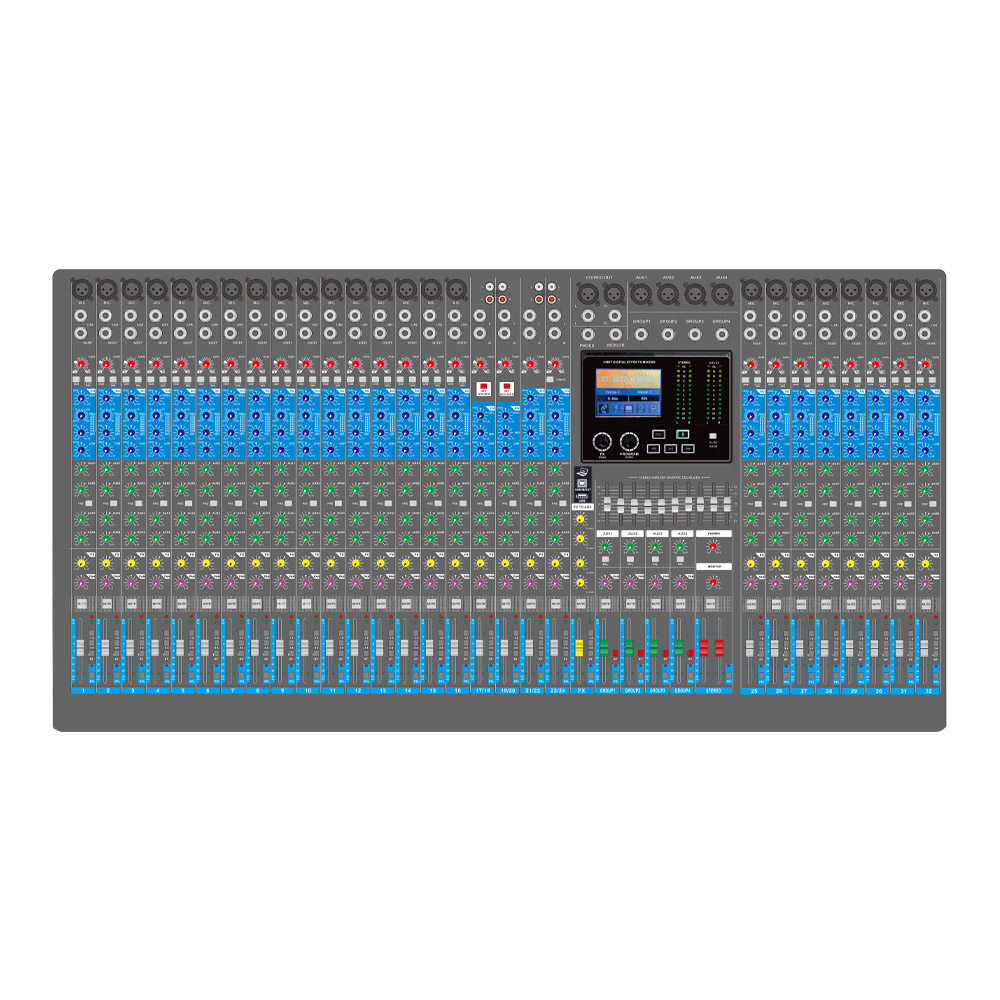

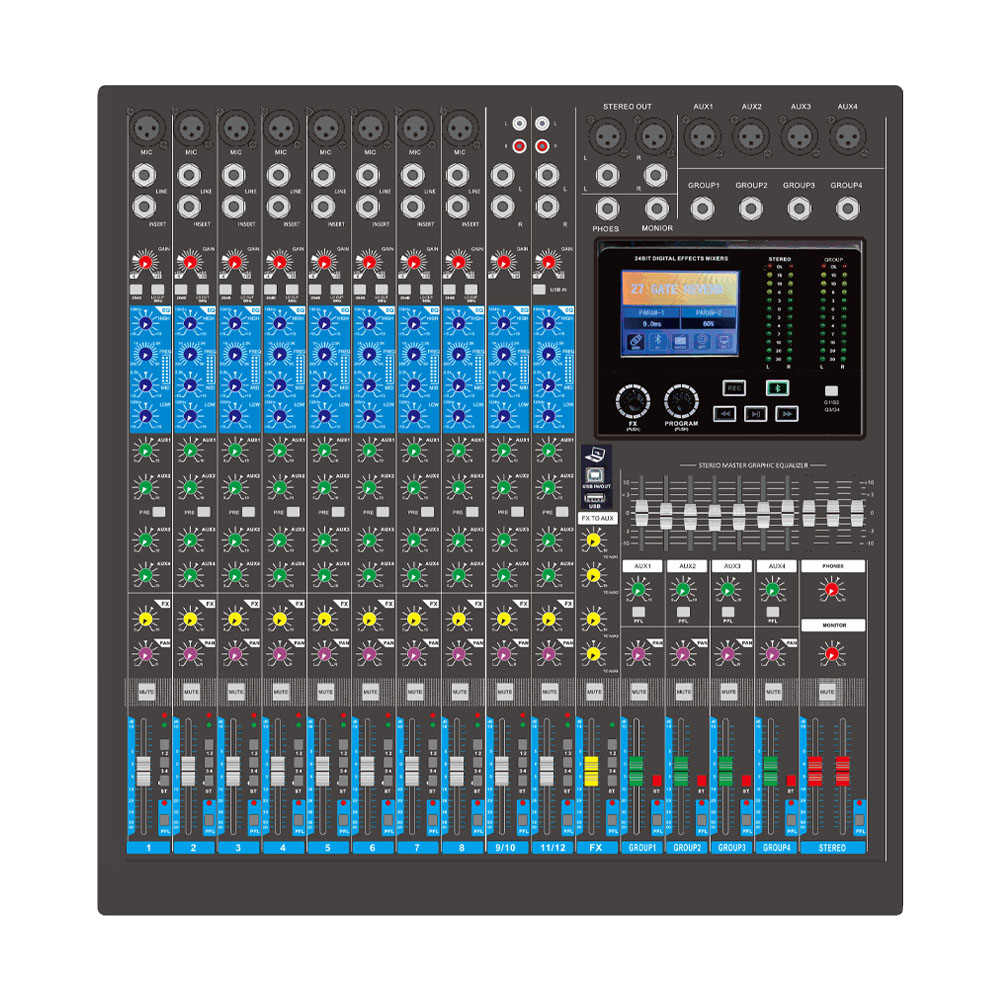

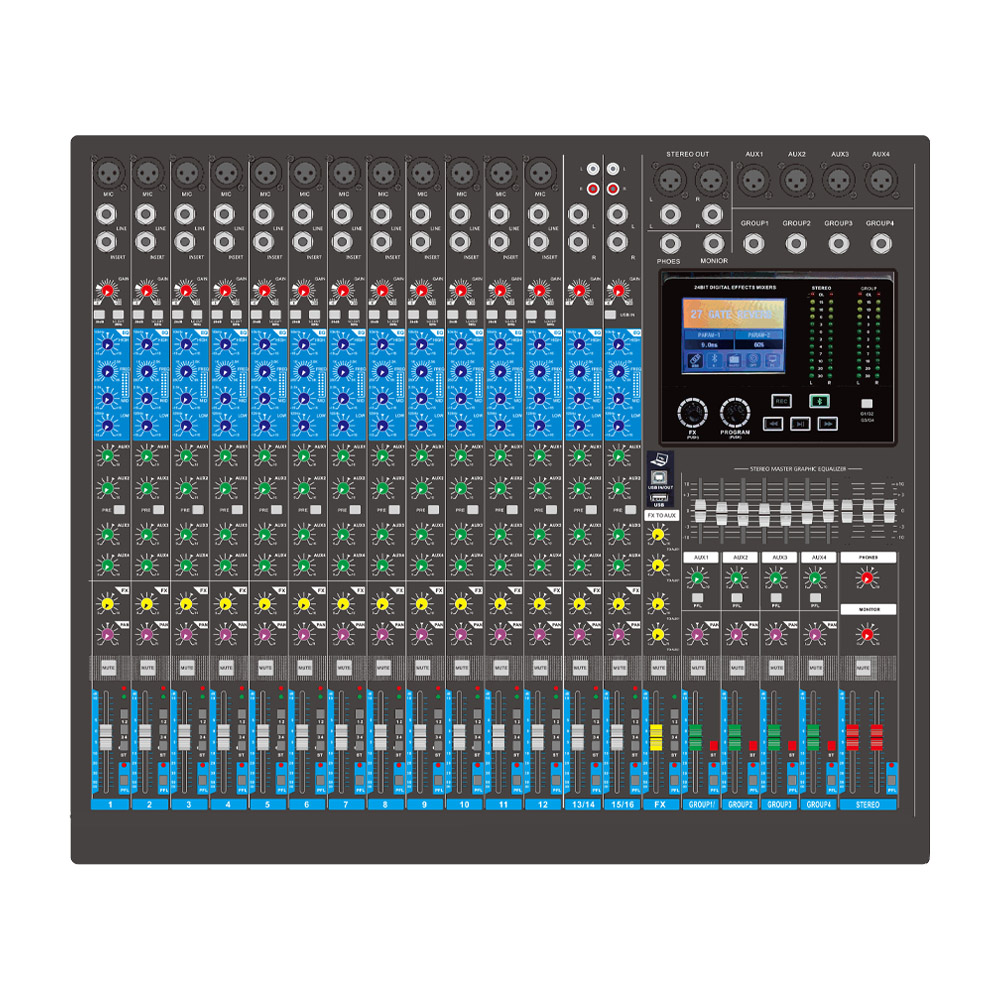

Product DetailsCL40 | CL36 | CL24 | CL16 | CL12 | ||
Total Harmonic Distortion 20Hz-20kHz@ +14dBu | 0.02% | |||||
Frequency Response | +0.5/-1.0dB 20Hz -20kHz, refer to the nominal output level @1kHz | |||||
Noise | -128 dBu Equivalent input Noise1-94 dBu Residual Output Noise 20 Hz- 20 kHz Rs = 150Ω Input Gain = Maximum | |||||
MIC: 32 | MIC: 28 | MIC: 16 | MIC: 12 | MIC: 8 | ||
LINE: 32 mono + 4 stereo | LINE: 28 mono + 4 stereo | LINE: 16 mono + 4 stereo | LINE: 12 mono + 2 stereo | LINE: 8 mono + 2 stereo | ||
INPUT Connectors | CH INSERT IN: 32 | CH INSERT: 28 | CH INSERT: 16 | CH INSERT IN: 12 | CH INSERT IN: 8 | |
RETURN: 1 stereo | RETURN: 1 stereo | RETURN: 1 stereo | RETURN: 1 stereo | RETURN: 1 stereo | ||
STEREO OUT: 1 | STEREO OUT: 1 | STEREO OUT: 1 | STEREO OUT: 1 | STEREO OUT: 1 | ||
AUX SEND: 4 | AUX SEND: 4 | AUX SEND: 4 | AUX SEND: 4 | AUX SEND: 4 | ||
CH INSERT OUT: 32 | CH INSERT OUT: 28 | CH INSERT OUT: 16 | CH INSERT OUT: 12 | CH INSERT OUT: 8 | ||
MONITOR OUT: 1 | MONITOR OUT: 1 | MONITOR OUT: 1 | MONITOR OUT: 1 | MONITOR OUT: 1 | ||
OUTPUT Connectors | GROUP OUT: 4 | GROUP OUT: 4 | GROUP OUT: 4 | GROUP OUT: 4 | GROUP OUT: 4 | |
PHONES: 1 | PHONES: 1 | PHONES: 1 | PHONES: 1 | PHONES: 1 | ||
Crosstalk | -74dB @ 1kHz | |||||
Phantom Power | 48V phantom power per channel | |||||
Input HPF | MIC INPUT (100Hz 12dB/oct) | |||||
High | 8kHz: shelving | |||||
Input channel EQ | Mid | 250Hz-5kHz: peaking | ||||
LOW | 125Hz: shelving | |||||
Digital Effect | FX | 32 PROGRAM,PARAMETER control | ||||
LED Level Meter Pre MONITOR Level | 4 x12 segments LED meter (PEAK,+10,+6,+3,0,-3,-6,-10,-15,-20,-25,-30dB) | |||||
PEAK lights if the signal comes within 3dB of the clipping level. | ||||||
Signal indicator | PEAK indicator (red),SlG indicator (green) | |||||
Peak lights if the signal comes within 3dB of the clipping level. | ||||||
USB Audio USB IN/OUT | USB Device, PC | |||||
Power Supply | 220V 50Hz/60Hz | |||||
Power Consumption | 86W max | 76W max | 68W max | 45W max | 41W max | |
Dimensions (W x H x D) | 1.068x138x665mm | 960x138x665mm | 739x138x665mm | 528x138x665mm | 417x138x665mm | |
NET Weight | 19kg (41.9Ib) | 15.5kg(34.2lb) | 9.0kg(19.8lb) | 7.5kg (16.5lb) | 4.3kg | |
