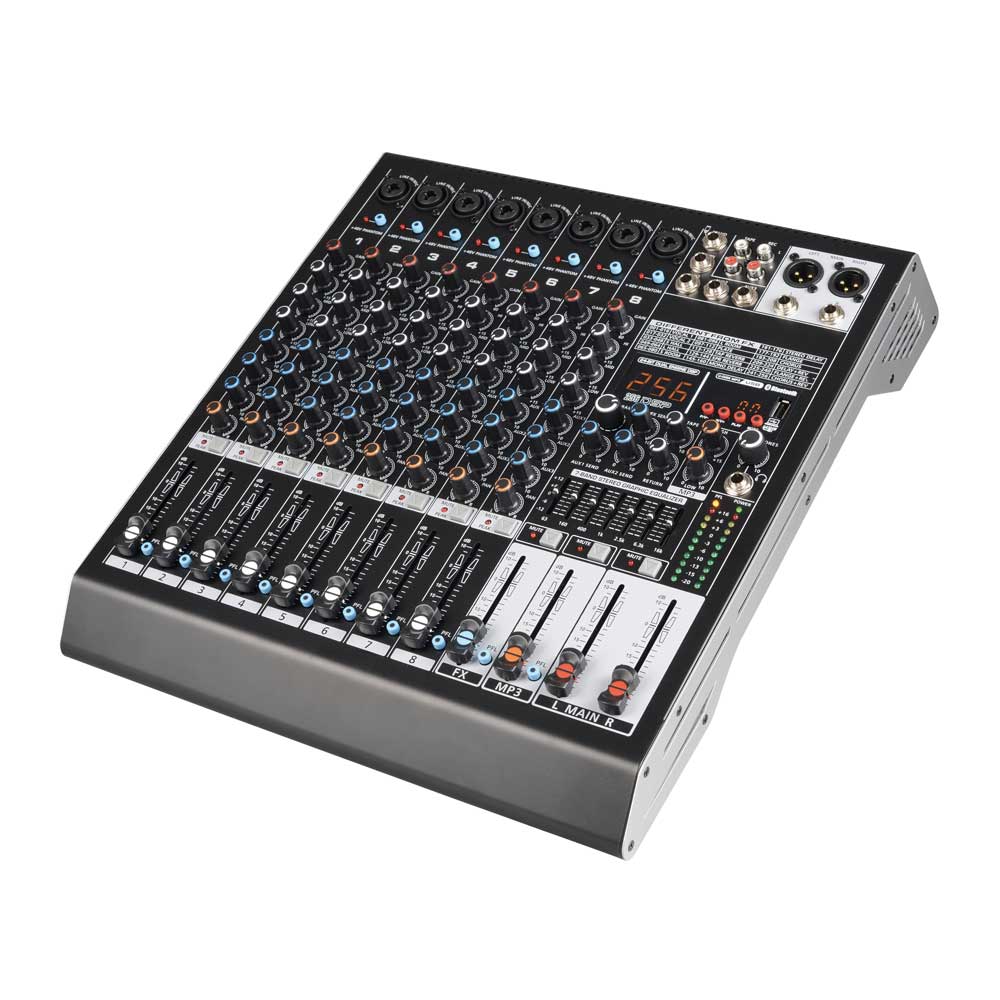

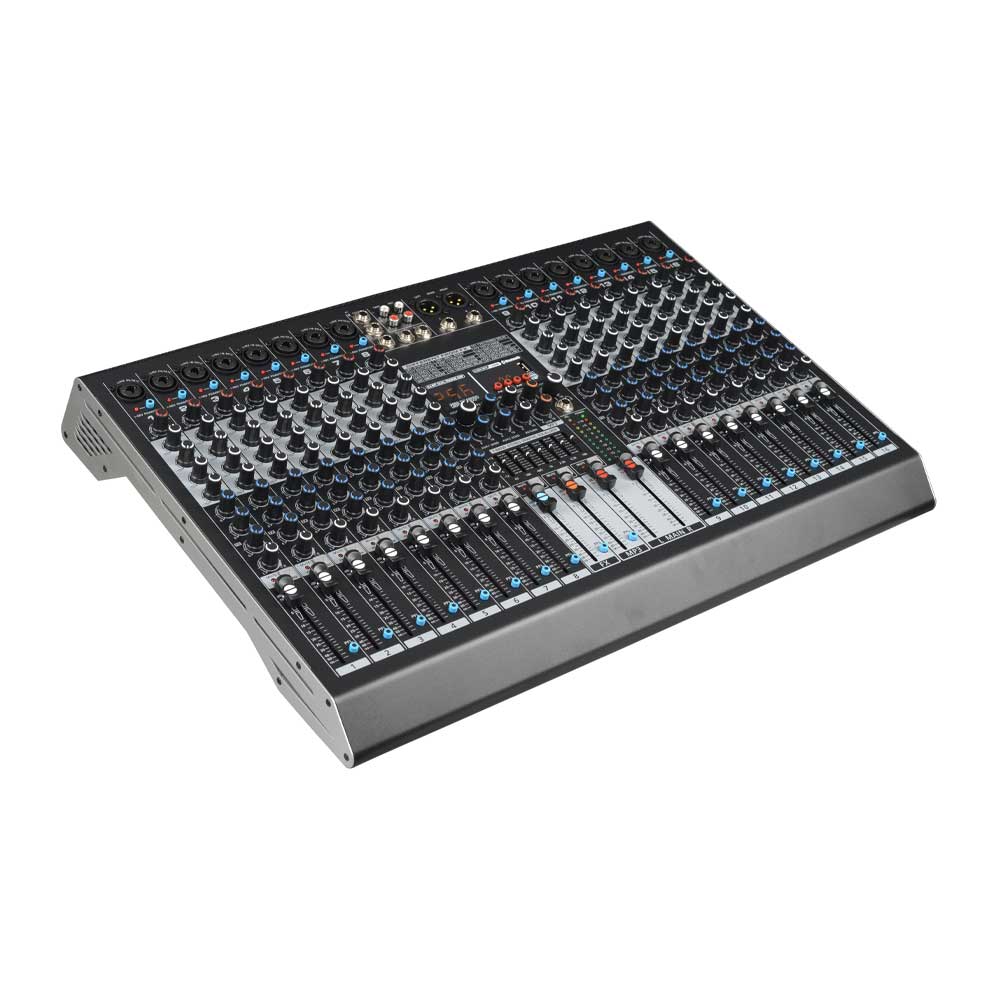

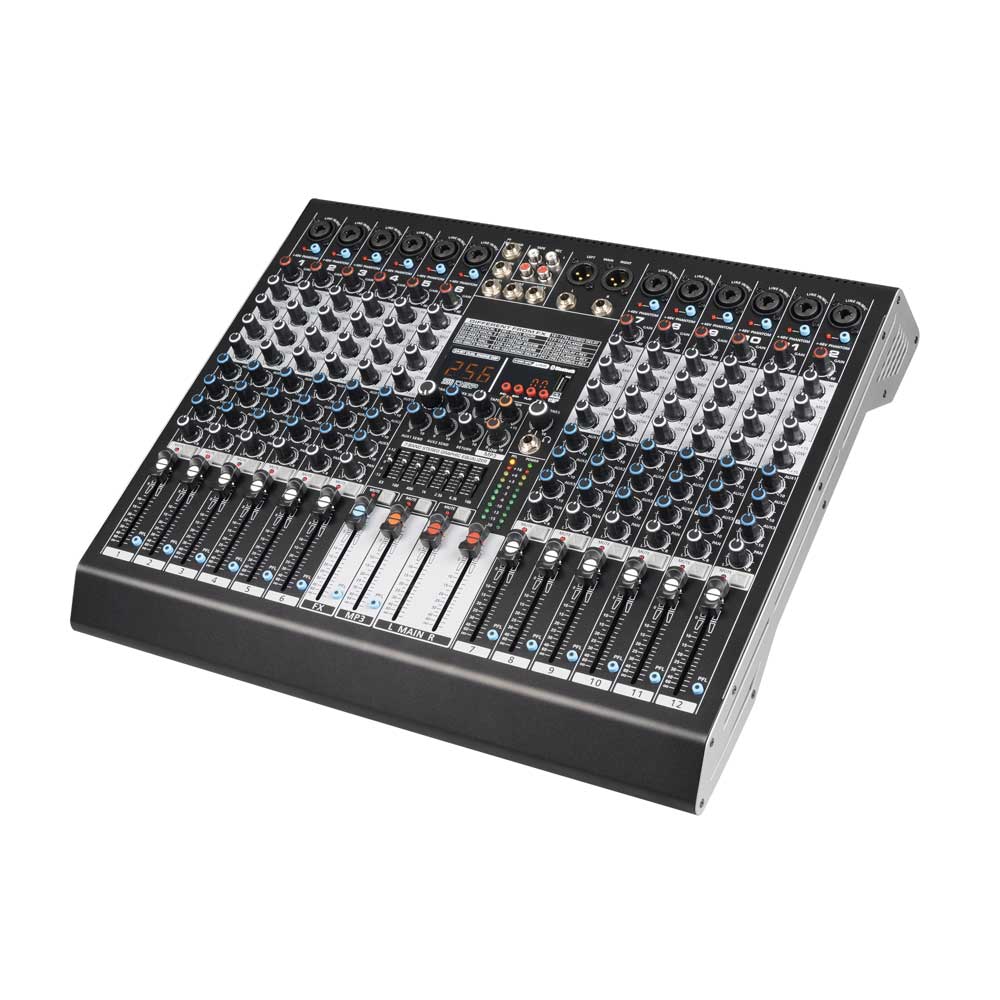

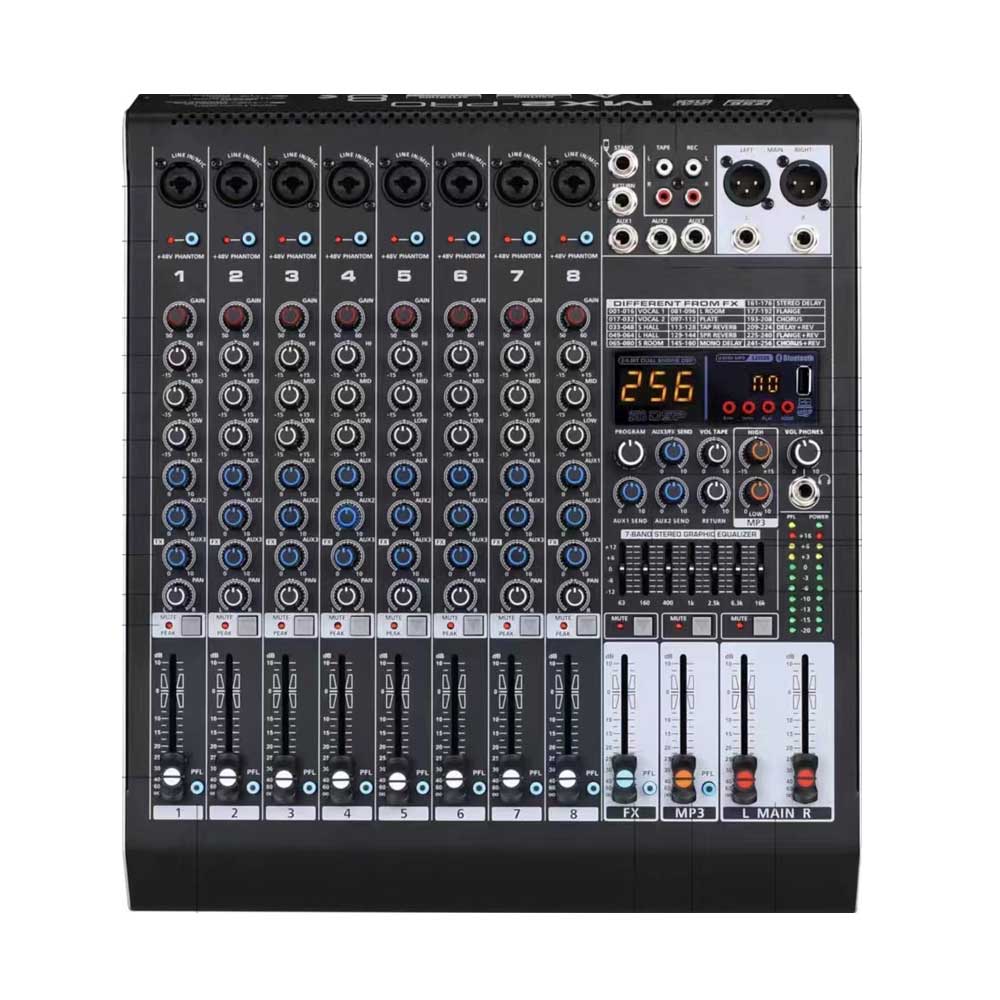

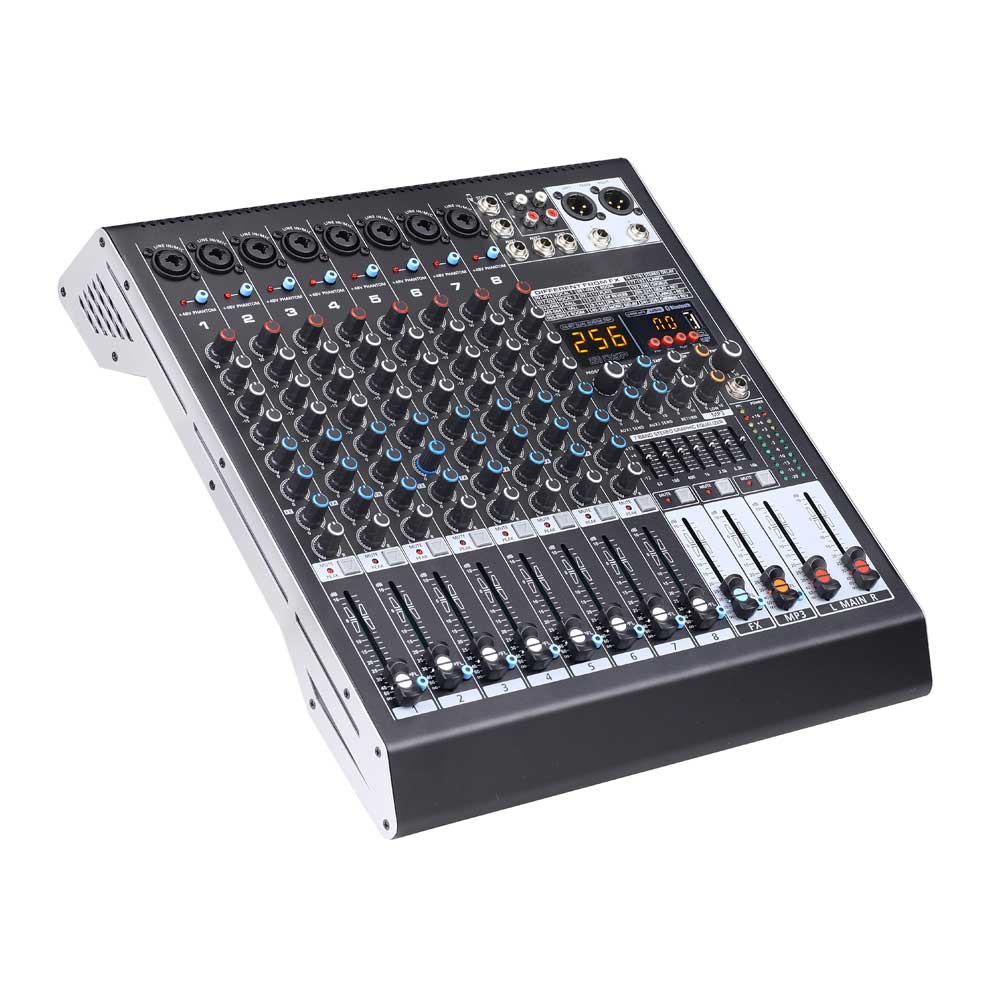

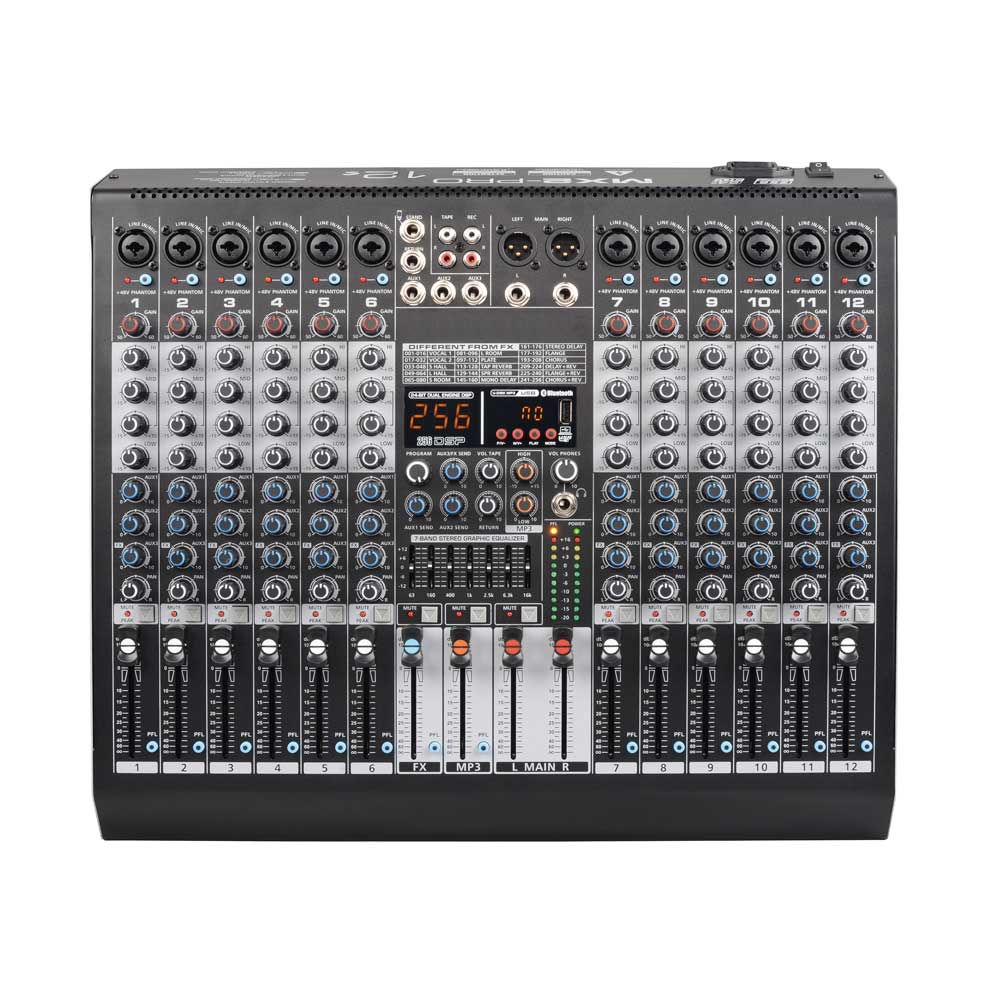

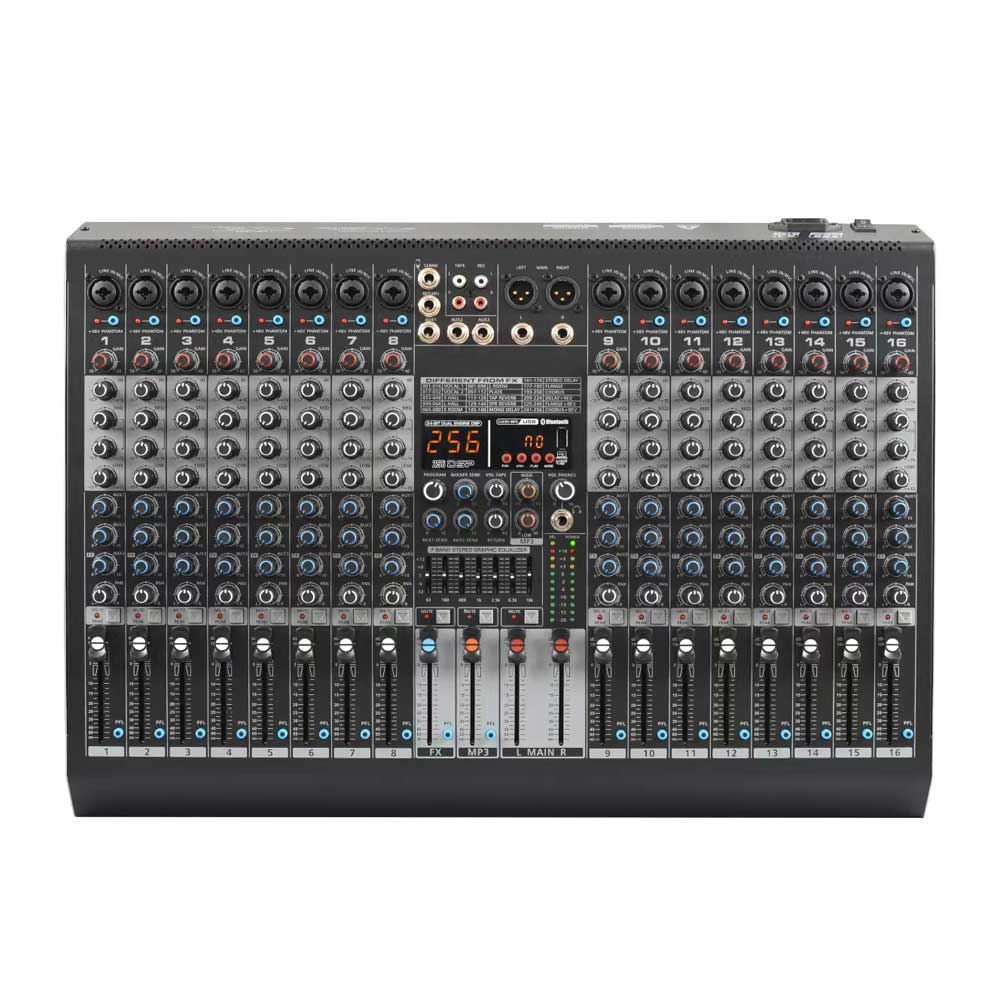

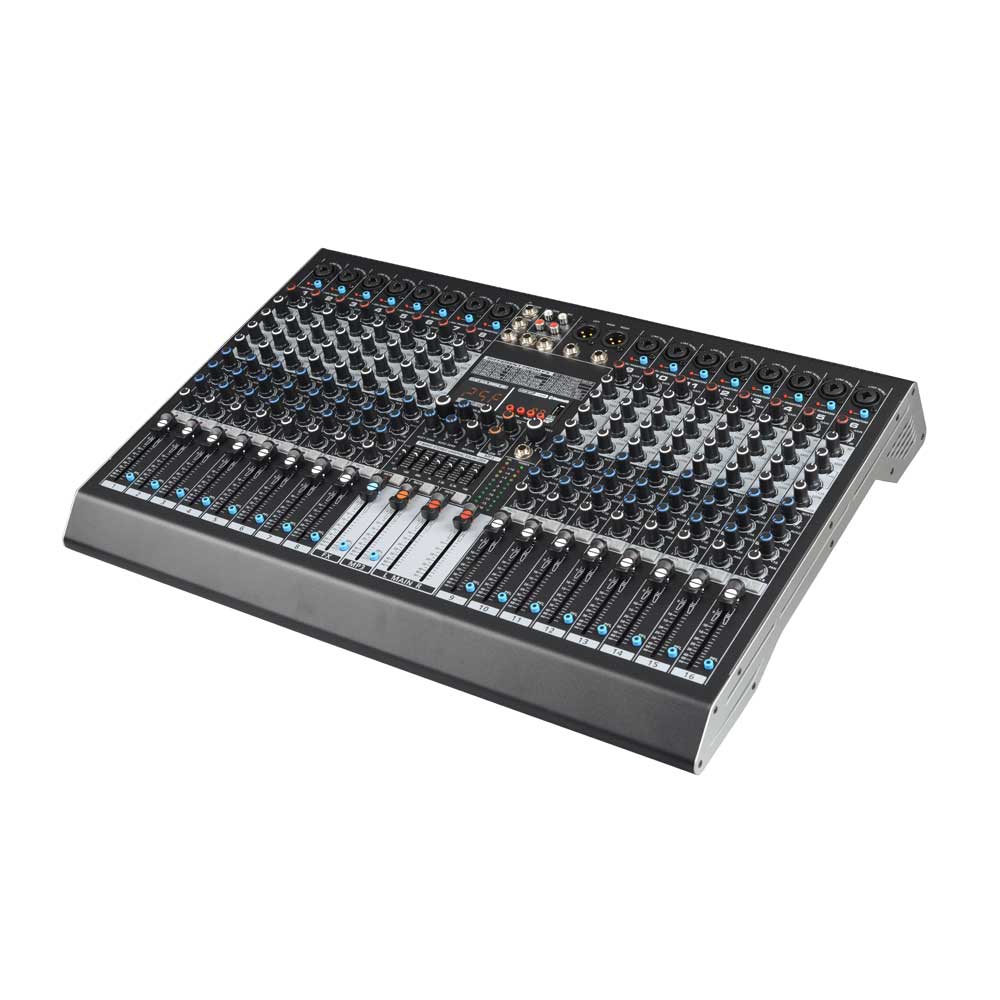

6/8/12/16 Line channel
256 bits DSP
+86–21–61478548
wechat
Product DetailsModel | PRO-6 | PRO-8 | PRO-12 | PRO-16 |
Input | 6 MIC Input | 8 MIC Input | 12 MIC Input | 16 MIC Input |
6 MONO LINE Input | 8 MONO LINE Input | 12 MONO LINE Input | 16 MONO LINE Input | |
1 CH RETURN MONO Input | ||||
1 CH RECORD STEREO Input | ||||
Output | 2 Group Master STEREO Output | |||
1 CH HEADPHONE Output | ||||
1 Group AUX Output | 3 Group AUX Output | 3 Group AUX Output | 3 Group AUX Output | |
1 Group RETURN Output | 1 Group RETURN Output | |||
1 Group RECORD STEREO Output | 1 Group RECORD STEREO Output | 1 Group RECORD STEREO Output | ||
1 Group STEREO Output | ||||
2 Track CD/TAPE Output | ||||
1 Group FX SEND | ||||
1 Group MON SEND | ||||
Power Supply | 110-220V, 20W | 110-220V, 30W | ||
Feature | * with Bluetooth/MP3/Recording/USB Sound Card /USB Recording & LCD display | |||
* Master output with dual stereo level indicator | ||||
* 48V phantom supply on Mic connectors | ||||
* Built-in 256 bits DSP | ||||
* 2-band EQ on MONO input channels | * 3-band EQ on MONO input channels | * 4-band EQ on MONO input channels | * 4-band EQ on MONO input channels | |
* Peak indicator | * Peak/Mute indicator | |||
* Built-in 5-band Stereo EQ | * Built-in 7-band Stereo EQ | |||
* OTG | ||||
Dimensions | 315*285*80mm | 410*355*80mm | 465*355*80mm | 575*355*80mm |
Weight | 2.65kg | 4.05kg | 5.15kg | 6.25kg |
