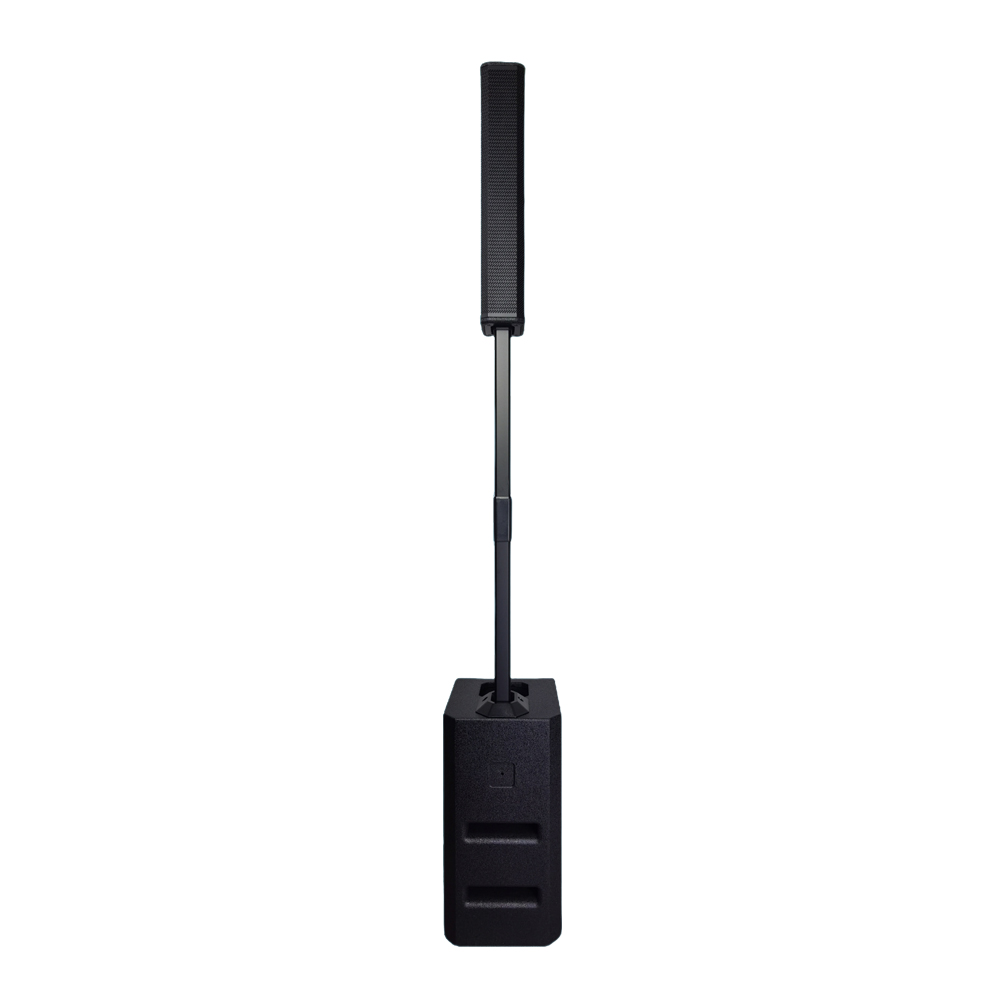

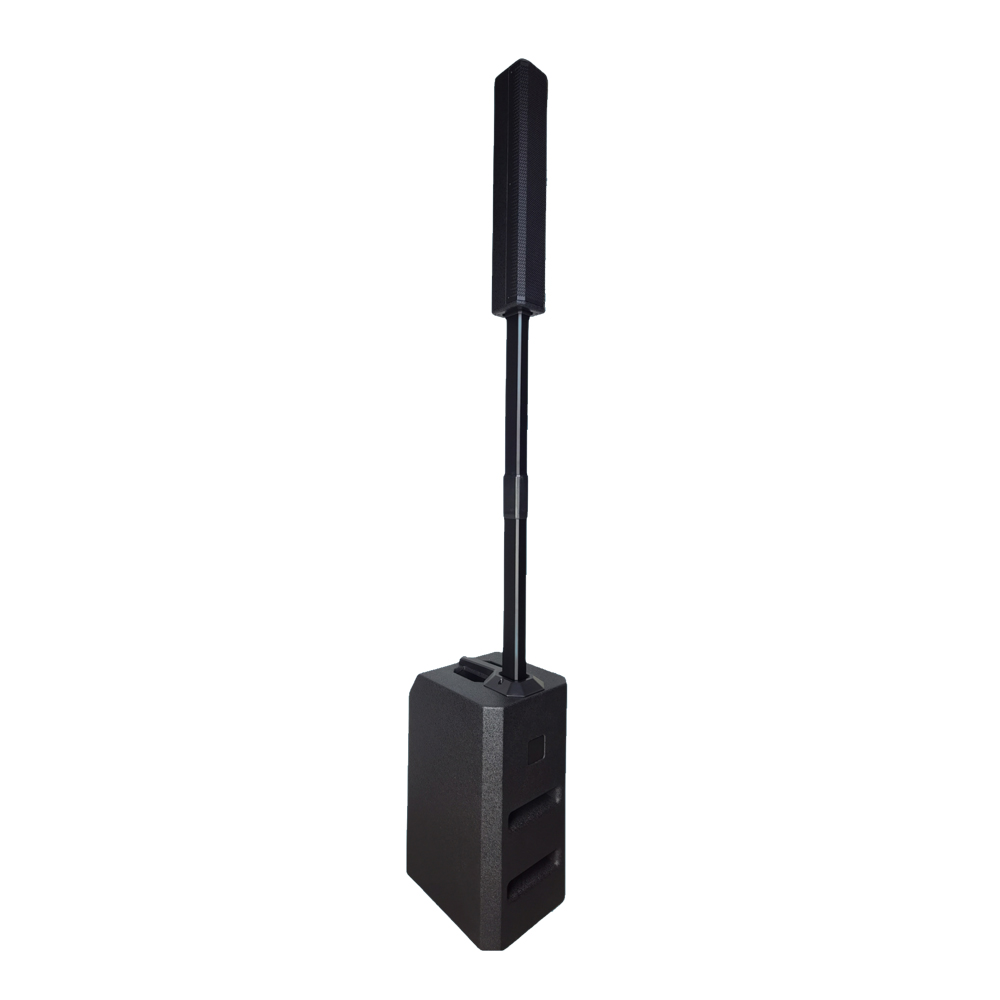

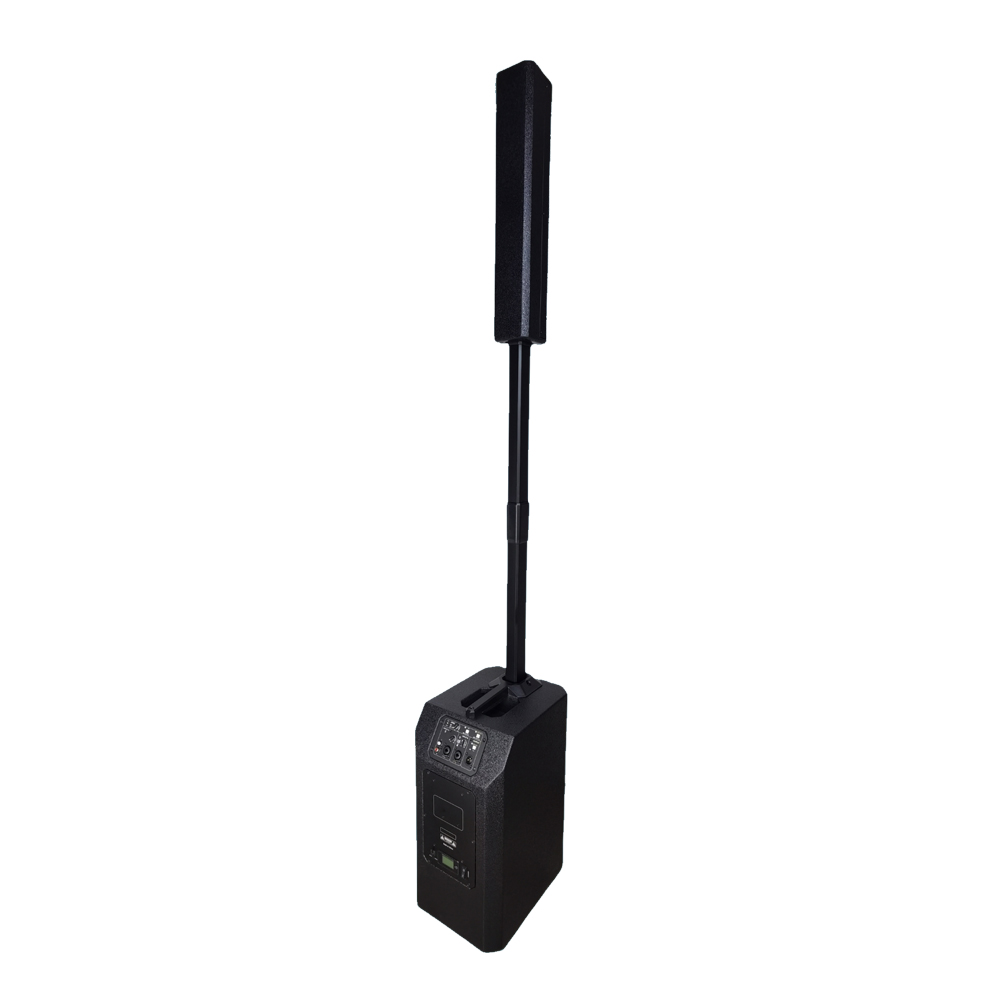

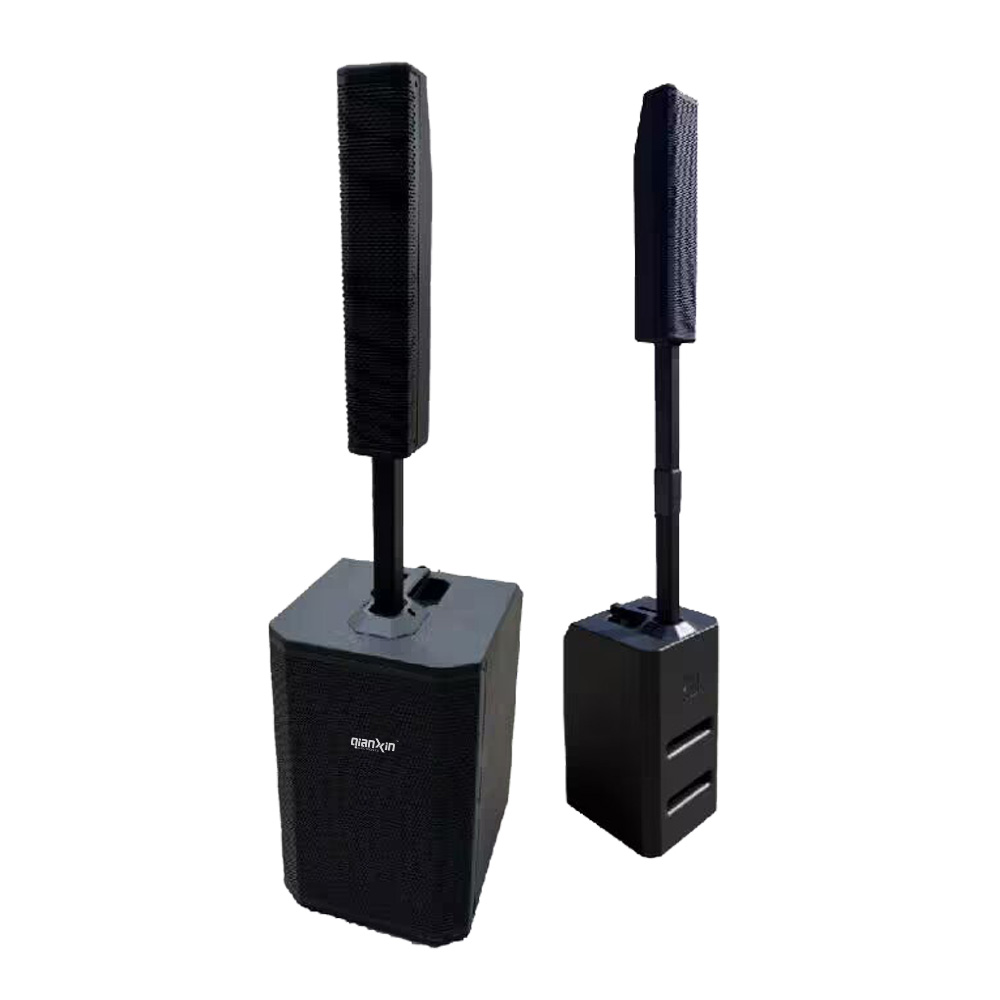

Introducing the S800BA and S1202BA: portable, battery-powered column speakers with a wide soundstage, thanks to their 6x2.3-inch and 8x2.3-inch drivers, coupled with deep bass from 8-inch and 12-inch subwoofers. Designed for expansive
120° horizontal and 40° vertical coverage, they're lightweight and pack a punch with a 1200W Class D amp. Choose from
installation or portable versions for versatile sound solutions.
+86–21–61478548
wechat
Product DetailsModel: | S800BA | S1200BA |
Rechargeable battery line array speaker | ||
Frequency response (-3 dB): | 40Hz-20KHz(-3dB) | 38Hz-20kHz(-3dB) |
Low frequency design: | 8"band-pass | 12" band-pass |
Mid-high design: | 6x2.3" line array speaker design | 8x2.3" line array speaker design |
LF Driver: | 8"with 51mm VC | 12" with 51mm VC |
HF Driver: | 2. 3" Neodymium full range | |
Maximum SPL: | 122dB | 123dB |
Coverage (H x V): | 120°X40° | 120°X40° |
Amplifier rating: | 300w+300w RMS | 400W+400W RMS |
LF channel rating: | 300W | 400W |
HF channel rating: | 300W | 400W |
Crossover frequency: | 4th / 200hz DSP | |

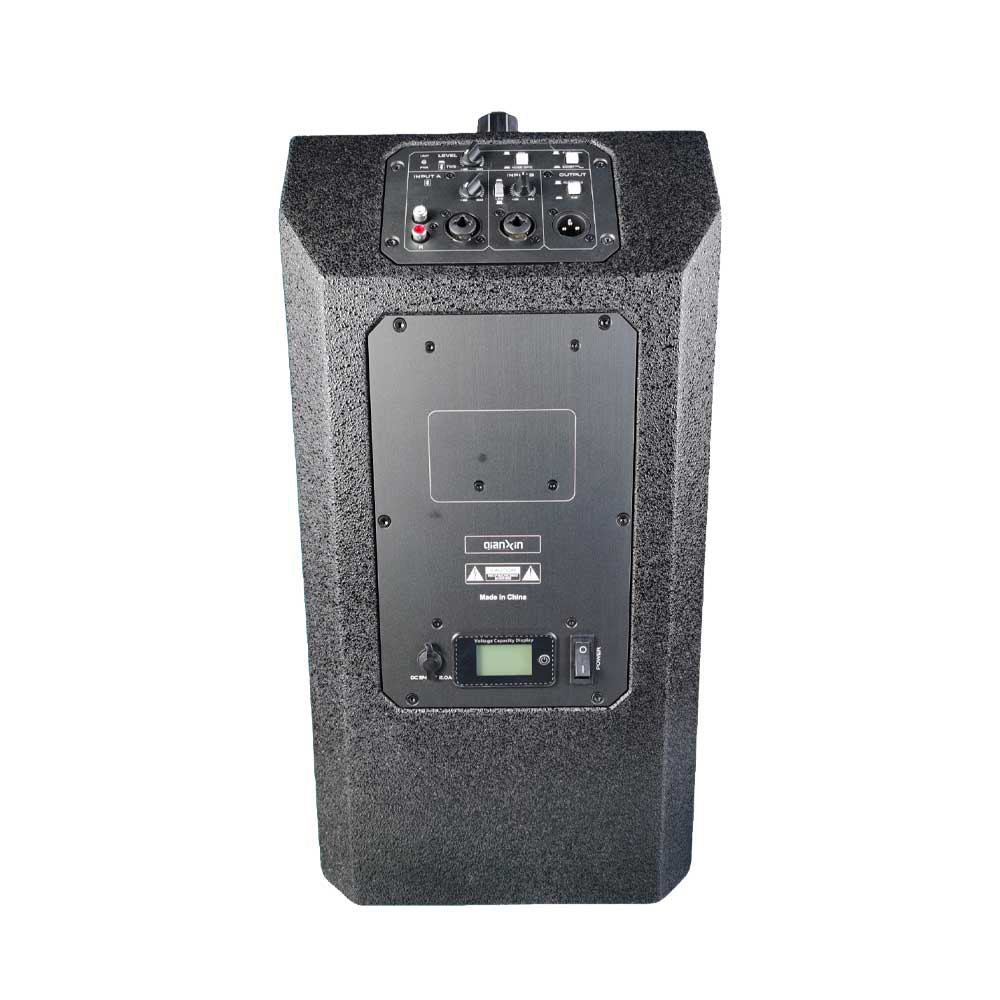

Connectors: | 2x XLR/TRS Combo Jack Input 1x Stereo RCA Input 1x Wireless Bluetooth Audio Input 1x XLR THRU Output | |
Enclosure: | Plywood with matt paint | |
Grille: | Steel with black or white powder coat | |
Dimensions (WxHxD): | SUB W258 H517 D330 | SUB W350 H560 D430MM |
Column W96 H550 D103 Total height H1595mm | Column W96 H597 D103 Total height H2000mm | |
Net weight: | SUB :12.3KG | SUB: 17.4kg |
Column: 2.1KG | Column: 2.1kg | |
Pole: 0.9KG | ||
Shipping Dimensions (HxWxD): | 540*335*570mm, 17kg | 637*425*662mm, 23kg |
Lithium Battery: | DC 48V 5A | |
Battery Charger: | DC 54.6V 2A | |
Voltage: | AC110v-AC220v | |
