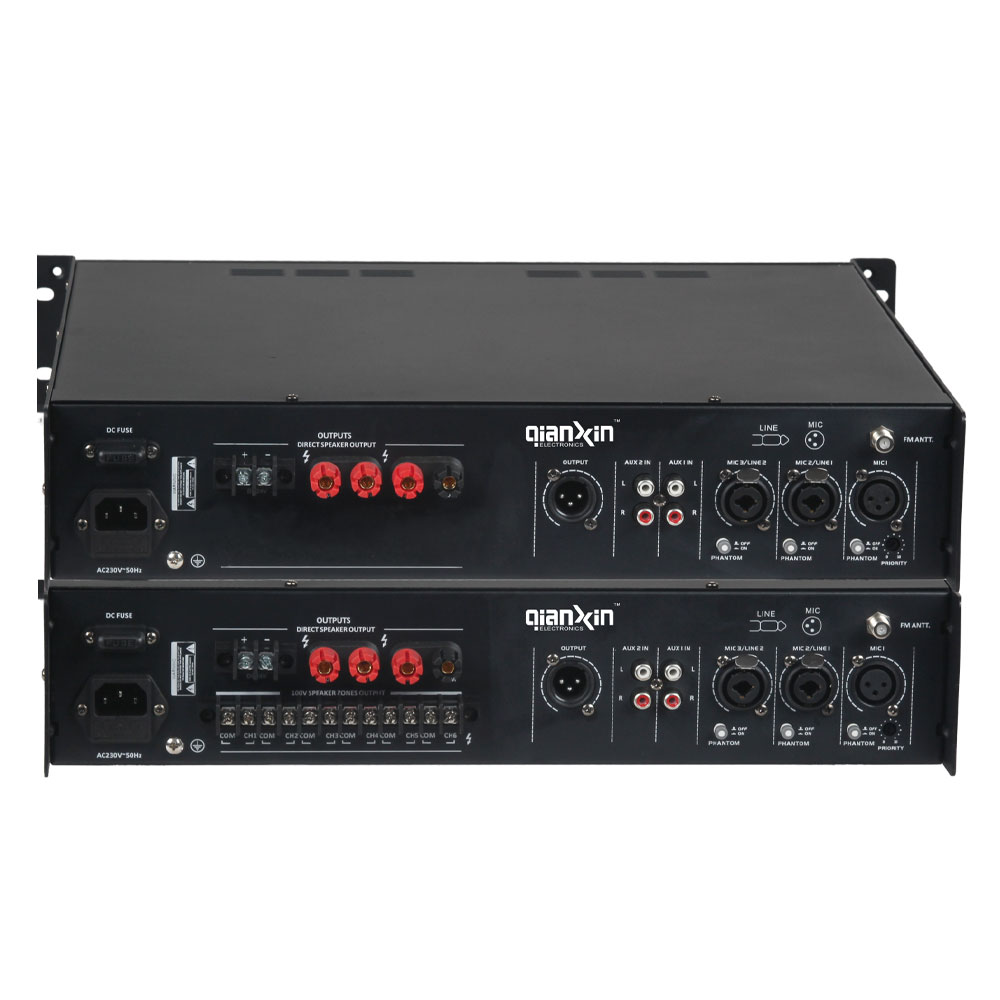

TYDC-120/250/350/450(B)(BC)_Qianxin Electronics Co., Ltd.

· 3 Mic(XLR) inputs,2 Aux(TRS) inputs and 2 Line(RCA) inputs;

· Each microphone connector with switchable phantom power;

· Chime/Siren input and Mic1 channel with priority-function;

· Built-in Mp3 player with Bluetooth, FM radio and recorder;

· 1 Pre-amp output with XLR connector;

· Treble, bass and master volume adjusters;

+86–21–61478548

wechat

POWER OUTPUT:

TYDC-120(B)(BC): 120W;

TYDC-250(B)(BC): 250W;

TYDC-350(B)(BC): 350W;

TYDC-450(B)(BC): 450W;

· 3 Mic(XLR) inputs,2 Aux(TRS) inputs and 2 Line(RCA) inputs;

· Each microphone connector with switchable phantom power;

· Chime/Siren input and Mic1 channel with priority-function;

· Built-in Mp3 player with Bluetooth, FM radio and recorder;

· 1 Pre-amp output with XLR connector;

· Treble, bass and master volume adjusters;

· Signal, peak and fault indication;

· 5 segments signal level indication;

· Protection: limit, over-current, over-heat, short-circuit, turn on delay;

· B series with 6 zone outputs(100V) and separate zoning switch;

· BC series with 6 zone outputs(100V)and separate volume control;

· Use CMOS power transistor, analog amplifier;

· Output:100V,70V,4~16 ohms;

· Power supply:AC115V/230V,DC24V;
