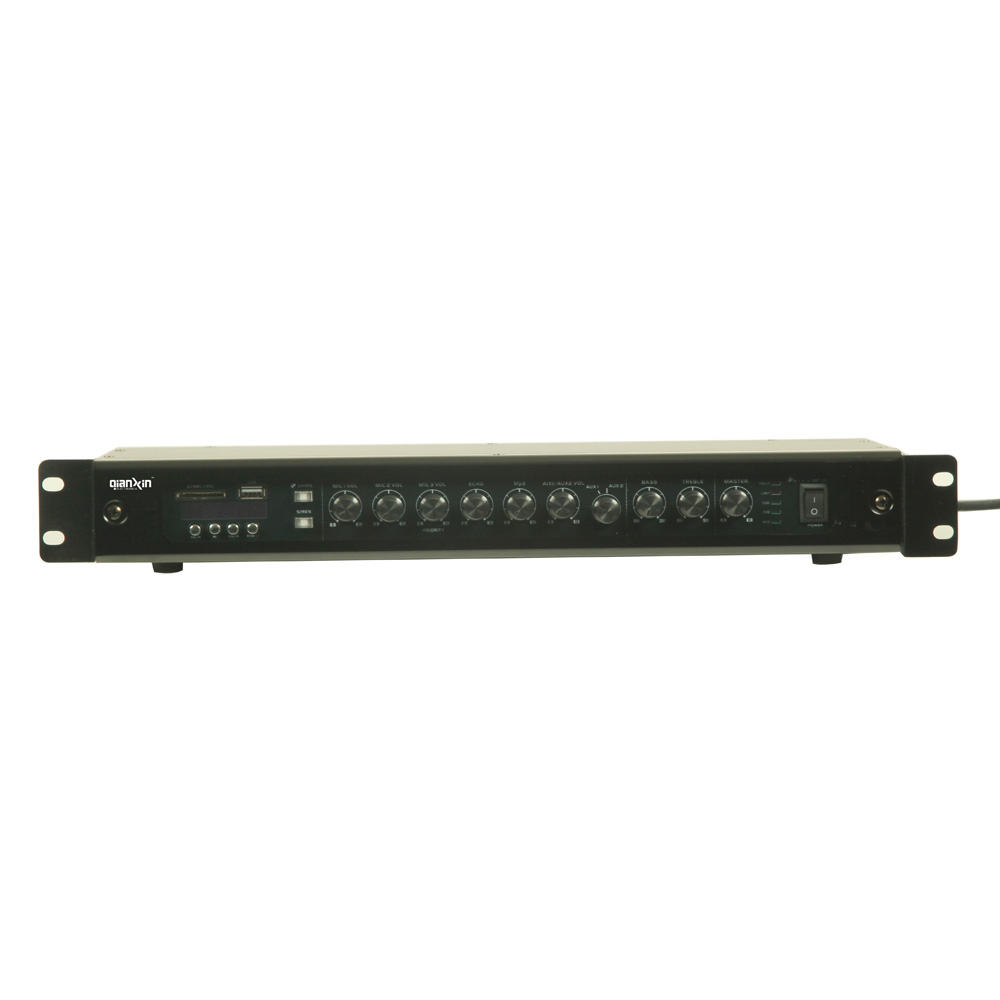

DBT-180_Qianxin Electronics Co., Ltd.

· Class D amplifier without output transformer, use switch power;

· 1 Mic(XLR) balanced input with phantom-power(switchable) and echo effector;

· 2 Mic/Line(6.35mm TRS) balanced inputs with selectors;

· 2 Aux inputs and 1 Line output with stereo RCA connectors;

· Chime/Siren input and Mic1 input with priority-function(switchable);

· Mp3 player with Bluetooth and record;

+86–21–61478548

wechat

· Class D amplifier without output transformer, use switch power;

· 1 Mic(XLR) balanced input with phantom-power(switchable) and echo effector;

· 2 Mic/Line(6.35mm TRS) balanced inputs with selectors;

· 2 Aux inputs and 1 Line output with stereo RCA connectors;

· Chime/Siren input and Mic1 input with priority-function(switchable);

· Mp3 player with Bluetooth and record;

· Treble and bass controls on main mix;

· 3 segments level indication, limit and fault indication;

· Protections: turn on delay, overload, overheat, short-circuit, limit;

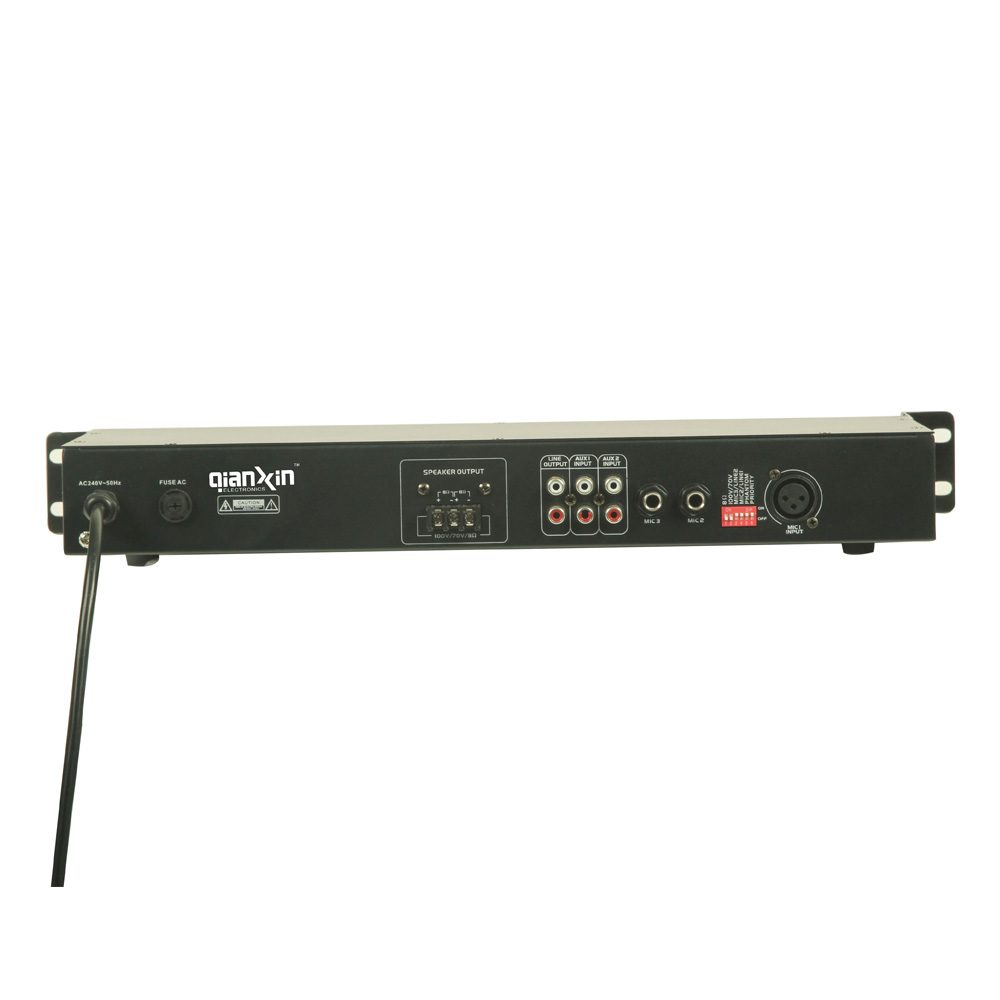

· Output screw terminal can be set: 8ohm/70V/100V or dual 8ohm output;

· Rated power output: 180W;

· Power supply: AC115V/230V;

· Switch power, class D amplifier;
